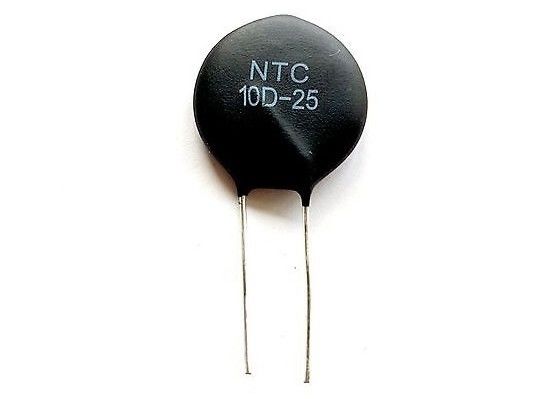

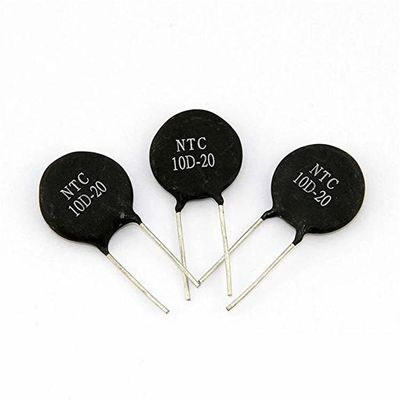

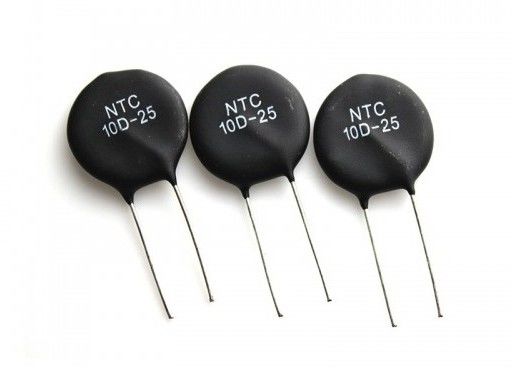

ICL Einschlussstrom beschränkt 2PIN Disc Power NTC Thermistor 25mm 0,7D-25 1,5D-25 3D-25 5D-25 10D-25 12D-25 16D-25 20D-25
Hauptparameter und Abmessungen
Verbrauch | Nennwiderstand | (A) | D | L | F |
Abmessungen (Einheit: mm) |
|
Max. Ruhig. Zustand der Strömung |
Dmax | Lmin | F ± 1 | Tmax | d | ||
5D-5 | 5 | 1 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
10D-5 | 10 | 0.7 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
20D-5 | 20 | 0.5 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
5D-7 | 5 | 2 | 8.5 | 25 | 5 | 5 | 0.55 |
8D-7 | 8 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
10D-7 | 10 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
12D-7 | 12 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
16D-7 | 16 | 0.7 | 8.5 | 25 | 5 | 5 | 0.55 |
20D-7 | 20 | 0.6 | 8.5 | 25 | 5 | 5 | 0.55 |
22D-7 | 22 | 0.6 | 8.5 | 25 | 5 | 5 | 0.55 |
33D-7 | 33 | 0.5 | 8.5 | 25 | 5 | 5 | 0.55 |
3D-9 | 3 | 4 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
4D-9 | 4 | 4 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
5D-9 | 5 | 3 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
6D-9 | 6 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
8D-9 | 7 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
10D-9 | 10 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
12D-9 | 12 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
16D-9 | 16 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
20D-9 | 20 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
22D-9 | 22 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
30D-9 | 30 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
33D-9 | 33 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
50D-9 | 50 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
60D-9 | 60 | 0.8 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
2.5D-11 | 2.5 | 5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
3D-11 | 3 | 5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
4D-11 | 4 | 4 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
5D-11 | 5 | 4 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
6D-11 | 6 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
8D-11 | 8 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
10D-11 | 10 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
12D-11 | 12 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
16D-11 | 16 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
20D-11 | 20 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
22D-11 | 22 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
30D-11 | 30 | 1.5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
33D-11 | 33 | 1.5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
1.3D-13 | 1.3 | 7 | 14.5 | 25 | 7.5 | 6 | 0.78 |
1.5D-13 | 1.5 | 6 | 14.5 | 25 | 7.5 | 6 | 0.78 |
3D-13 | 3 | 6 | 14.5 | 25 | 7.5 | 6 | 0.78 |
4D-13 | 4 | 5 | 14.5 | 25 | 7.5 | 6 | 0.78 |
5D-13 | 5 | 5 | 14.5 | 25 | 7.5 | 6 | 0.78 |
6D-13 | 6 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
7D-13 | 7 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
8D-13 | 8 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
10D-13 | 10 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
12D-13 | 12 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
15D-13 | 15 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
16D-13 | 16 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
20D-13 | 20 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
30D-13 | 30 | 2.5 | 14.5 | 25 | 7.5 | 6 | 0.78 |
47D-13 | 47 | 2 | 14.5 | 25 | 7.5 | 6 | 0.78 |
1.3D-15 | 1.3 | 8 | 16.5 | 25 | 7.5 | 6 | 0.78 |
1.5D-15 | 1.8 | 8 | 16.5 | 25 | 7.5 | 6 | 0.78 |
3D-15 | 3 | 7 | 16.5 | 25 | 7.5 | 6 | 0.78 |
5D-15 | 5 | 6 | 16.5 | 25 | 7.5 | 6 | 0.78 |
6D-15 | 6 | 5 | 16.5 | 25 | 7.5 | 6 | 0.78 |
7D-15 | 7 | 5 | 16.5 | 25 | 7.5 | 6 | 0.78 |
8D-15 | 8 | 5 | 16.5 | 25 | 7.5 | 6 | 0.78 |
10D-15 | 10 | 5 | 16.5 | 25 | 7.5 | 6 | 0.78 |
12D-15 | 12 | 4 | 16.5 | 25 | 7.5 | 6 | 0.78 |
15D-15 | 15 | 4 | 16.5 | 25 | 7.5 | 6 | 0.78 |
16D-15 | 16 | 4 | 16.5 | 25 | 7.5 | 6 | 0.78 |
20D-15 | 20 | 4 | 16.5 | 25 | 7.5 | 6 | 0.78 |
30D-15 | 30 | 3 | 16.5 | 25 | 7.5 | 6 | 0.78 |
33D-15 | 33 | 3 | 16.5 | 25 | 7.5 | 6 | 0.78 |
47D-15 | 47 | 3 | 16.5 | 25 | 7.5 | 6 | 0.78 |
50D-15 | 50 | 3 | 16.5 | 25 | 7.5 | 6 | 0.78 |
0.7D-20 | 0.7 | 12 | 21.5 | 25 | 10/7.5 | 7 | 1 |
1.3D-20 | 1.3 | 9 | 21.5 | 25 | 10/7.5 | 7 | 1 |
2.2D-20 | 2.2 | 8 | 21.5 | 25 | 10/7.5 | 7 | 1 |
2.5D-20 | 2.5 | 8 | 21.5 | 25 | 10/7.5 | 7 | 1 |
3D-20 | 3 | 8 | 21.5 | 25 | 10/7.5 | 7 | 1 |
5D-20 | 5 | 7 | 21.5 | 25 | 10/7.5 | 7 | 1 |
6D-20 | 6 | 6 | 21.5 | 25 | 10/7.5 | 7 | 1 |
8D-20 | 8 | 6 | 21.5 | 25 | 10/7.5 | 7 | 1 |
10D-20 | 10 | 6 | 21.5 | 25 | 10/7.5 | 7 | 1 |
12D-20 | 12 | 5 | 21.5 | 25 | 10/7.5 | 7 | 1 |
16D-20 | 16 | 5 | 21.5 | 25 | 10/7.5 | 7 | 1 |
0.7D-25 | 0.7 | 12 | 26.5 | 25 | 10/7.5 | 7 | 1 |
1.5D-25 | 1.5 | 10 | 26.5 | 25 | 10/7.5 | 7 | 1 |
3D-25 | 3 | 9 | 26.5 | 25 | 10/7.5 | 7 | 1 |
5D-25 | 5 | 8 | 26.5 | 25 | 10/7.5 | 7 | 1 |
8D-25 | 8 | 7 | 26.5 | 25 | 10/7.5 | 7 | 1 |
10D-25 | 10 | 7 | 26.5 | 25 | 10/7.5 | 8 | 1 |
12D-25 | 12 | 6 | 26.5 | 25 | 10/7.5 | 7 | 1 |
16D-25 | 16 | 6 | 26.5 | 25 | 10/7.5 | 8 | 1 |
Beschreibung
Die Power-NTC-Thermistoren der MF72-Serie sorgen für die Unterdrückung von Inrush-Strom für empfindliche Elektronik.Das Anschließen eines MF72 in Serie mit der Stromquelle wird die Stromüberspannungen begrenzen, die typischerweise beim Einschalten erzeugt werdenWenn der Stromkreis angetrieben wird, sinkt der Widerstand des MF72 rasch auf einen sehr niedrigen Wert, der Stromverbrauch kann ignoriert werden und hat keine Auswirkungen auf den normalen Betriebsstrom.Die Verwendung des MF72 Power NTC Thermistors ist eine kostengünstigste Möglichkeit, um Überspannung zu reduzieren und sensible Elektronik vor Schäden zu schützen.
Anwendung
mit einer Leistung von mehr als 50 W und
• Stromversorgung und Wechselrichter
• Ständige Stromversorgung
• Energiesparlampen
• Elektronische Ballasten
• Filamentenschutz für verschiedene Arten von Lampen
• Einige Heizgeräte
• Bei höheren Leistungskreisen fragen Sie nach den Überspannungsschutzgeräten der Baureihen MF73 und MF74.
Eigenschaften
• Kleine Größe und schnelle Reaktion
• Hochleistungsfähigkeit
• Schnelle Reaktion auf Überspannung
• Hohe Materialkonstante (B-Wert)
• geringer Restwiderstand
• Breiter Betriebstemperaturbereich von -55 bis +200 °C
• Die zulässige Toleranz von R25 beträgt ±20%
• Langfristige Stabilität und Verlässlichkeit
